Glass-fibre Acoustic Ceiling
NRC 0.90 sound absorption with Class A fire performance — the only range we supply with CE marking.
- Samples available before approval — freight at buyer's account.
- Test reports and technical documentation released per product.
- FOB Qingdao or CIF to your destination port.
- Fire classification
- A (EN 13501-1+A1:2009 · GB 8624-2012)
- Sound absorption
- NRC ≥ 0.90 (EN ISO 354 · EN ISO 11654)
- Antibacterial
- 99.99% to GB/T 31402-2015
- Anti-mould
- class 0 to GJB 150.10A-2009
- Formaldehyde
- ≤ 0.124 mg/m³ to GB 6566
Overview
This is the range that carries the paperwork: CE marking, SGS reports and Korean fire certification, classified Class A to EN 13501-1 and tested to NRC ≥ 0.90 under EN ISO 354 / GB/T 20247. Antibacterial performance is above 99.99% to GB/T 31402 against E. coli and S. aureus, with anti-mould Grade 0 to GJB 150.10A.

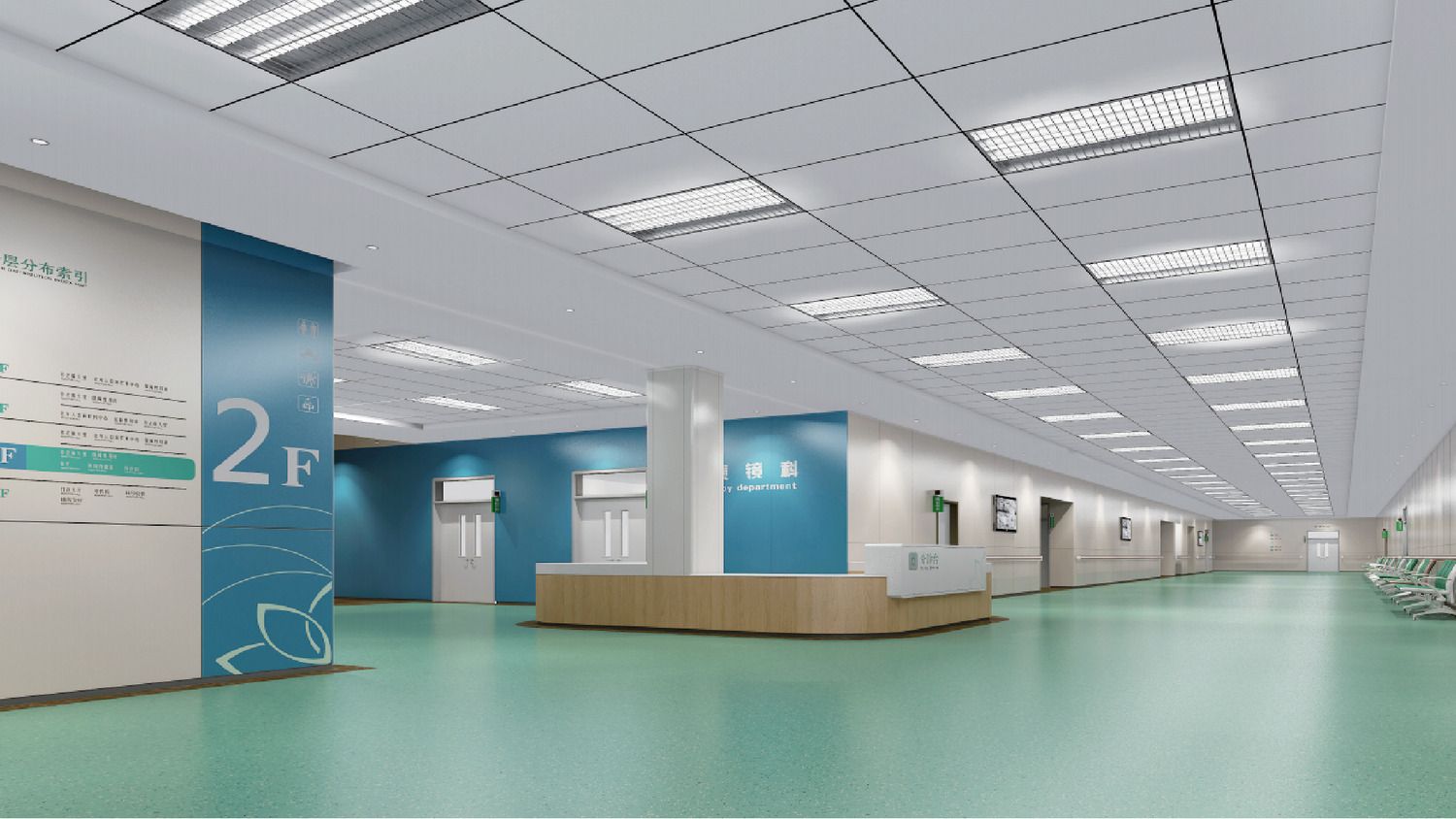

It is specified where speech privacy and reverberation matter — inpatient wards, consulting rooms, imaging suites, teaching spaces — and it is stable at RH 99, which is why it also appears in humid service areas where acoustic mineral fibre would fail.
Ceilings are supplied with the concealed grid and perimeter trim, cut to the setting-out drawing.
Key properties
- NRC ≥ 0.90 to EN ISO 354 / GB/T 20247
- Class A to EN 13501-1, with CE marking, SGS and Korean fire certification
- Antibacterial above 99.99% (GB/T 31402); anti-mould Grade 0 (GJB 150.10A)
- Density 100–150 kg/m³; stable at RH 99
- Cuts air-conditioning load — measured at roughly two-thirds of the baseline
Full specification
| Fire classification | A (EN 13501-1+A1:2009 · GB 8624-2012) |
|---|---|
| Sound absorption | NRC ≥ 0.90 (EN ISO 354 · EN ISO 11654) |
| Antibacterial | 99.99% to GB/T 31402-2015 |
| Anti-mould | class 0 to GJB 150.10A-2009 |
| Formaldehyde | ≤ 0.124 mg/m³ to GB 6566 |
Values are the manufacturer's tested figures. Where a figure is marked "report on request", the test report is released against a project reference.
Where it is specified
- Inpatient wards
- Consulting and treatment rooms
- Imaging suites
- Lecture theatres
- Open-plan offices
- Restaurants and hospitality
FAQ
Can I get samples before specifying?
Yes — tell us finish and thickness and we send panels including cut sections, so your team sees the build-up rather than only the face.
Which documents come with the panel?
Fire, acoustic, antibacterial or hazardous-substance reports as applicable, plus the installation method statement. CE marking applies to our glass-fibre acoustic ceiling range only.
What is the minimum order and lead time?
Quoted per project, since both depend on panel types and mix. Send the area and the specification and we confirm in writing with the quotation.
